Quick reference for supported lumbar spine views, table bucky setup, movement, bone variations, and current limitations.
Quick reference
Question
What to expect
Which projections are confirmed?
AP, L5-S1 lateral, oblique, and lateral lumbar spine projections.
Can users try other projections?
Yes. These are confirmed examples. Other projections may be possible when the simulated setup supports them.
What anatomy is included?
Thoracic vertebrae, scapulae, ribs 1-10, sternum, lumbar spine, and pelvis.
What setup is used?
Table bucky workflow with recumbent patient positioning.
What movement is included?
Patient lateral rotation onto the right side for decubitus positioning plus craniocaudal and mediolateral adjustment.
What bone variations exist?
Healthy bone version.
Known limitation
Prone or erect lumbar spine positioning is not supported. Vertebrae have limited trabecular bone detail.
Projection expectations
The projections listed on this page are confirmed examples for this simulation module. They do not define the full limit of what can be attempted. The simulator creates an image from the selected anatomy, patient position, joint movement, detector setup, tube position, collimation, and exposure settings, so other projections may be possible when the setup supports them.
Visual examples
Simulator setup
Bone model
Example exposure

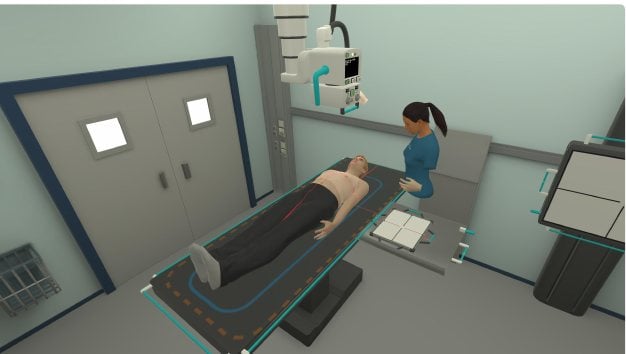

Simulator setup and positioning environment
Bone model examples from the simulation

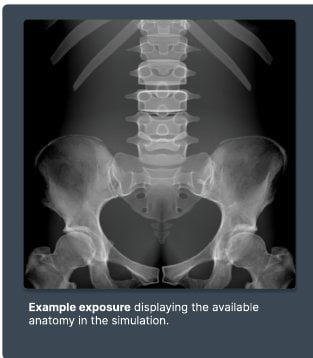

Example exposure only: shows included anatomy, not a positioning standard or diagnostic-quality image. Results vary with tube, detector, collimation, patient movement, and alignment.
Imaging capabilities
Capability
Details
Radiographic tube
Full range of motion, including vertical, horizontal, tilt, and rotation. The cassette can be rotated, and collimation size is adjustable.
Detector methods
The detector is set up for use with the table bucky.
Confirmed projections
Confirmed examples include AP, L5-S1 lateral, oblique, and lateral lumbar spine projections. They do not define the full limit of what can be attempted. Other projections may be possible when the simulated setup supports them.
Patient lateral rotation onto the right side for decubitus positioning. Patient craniocaudal and mediolateral adjustment.
Bone variations
Healthy bone version
Known limitations
The L-spine simulation is limited to recumbent patient positioning. This restricts projections that require prone or erect positioning. The vertebrae also have a low presence of trabecular bone structures, which may limit radiographic realism when evaluating bone quality and internal architecture.
