Quick reference for supported knee views, free-plating setup, movement, bone variations, and current limitations.
Quick reference
Question
What to expect
Which projections are confirmed?
AP and cross-table lateral knee views.
Can users try other projections?
Yes. These are confirmed examples. Other projections may be possible when the simulated setup supports them.
What anatomy is included?
Tibia, fibula, femur, and patella.
What setup is used?
Free plating and mobile detector cart workflow with a cross-table lateral setup.
What movement is included?
Hip internal/external rotation, leg adduction/abduction, and patient craniocaudal and mediolateral adjustment.
What bone variations exist?
Healthy bone version and osteoarthrosis variation.
Known limitation
Standing knee positioning and side-lying lateral knee positioning are not included. Lateral imaging is cross-table only.
Projection expectations
The projections listed on this page are confirmed examples for this simulation module. They do not define the full limit of what can be attempted. The simulator creates an image from the selected anatomy, patient position, joint movement, detector setup, tube position, collimation, and exposure settings, so other projections may be possible when the setup supports them.
Visual examples
Simulator setup
Bone model
Example exposure

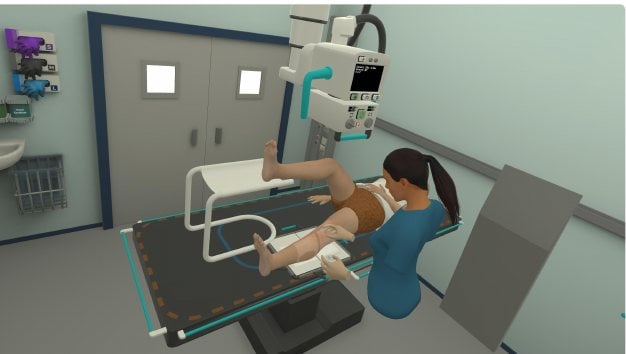

Simulator setup and positioning environment
Bone model examples from the simulation
Example exposure only: shows included anatomy, not a positioning standard or diagnostic-quality image. Results vary with tube, detector, collimation, patient movement, and alignment.
Imaging capabilities
Capability
Details
Radiographic tube
Full range of motion, including vertical, horizontal, tilt, and rotation. The cassette can be rotated, and collimation size is adjustable.
Detector methods
The detector is set up for free plating and use with a mobile detector cart. The patient is set up for a cross-table lateral projection.
Confirmed projections
Confirmed examples include AP and cross-table lateral views. They do not define the full limit of what can be attempted. Other projections may be possible when the simulated setup supports them.
Anatomy and movement
Area
Details
Included anatomy
Tibia, fibula, femur, and patella.
Joint mobility
Hip internal and external rotation. Leg adduction and abduction. Patient craniocaudal and mediolateral adjustment.
Bone variations
Healthy bone version
Pathological version featuring osteoarthrosis
Known limitations
The patient remains supine and cannot be positioned standing. For lateral knee imaging, only a cross-table projection is currently possible because the patient cannot be rotated onto their side.
